BFI Stahlbau systems uses its own innovative machine park to deliver products and services of the highest quality.
We present you an extract of our possibilities to the sheet metal processing, surface finishing and welding assemblies...
Your benefits
- Production from a single source
- Treatment by one of the most modern drawing programs
- Use of 3-D CAD programs
- Precision in the handling and processing of different materials
- Micro and series production
- Stock items available in various thicknesses and qualities in steel and stainless steel
Construction / Software / Data formats:
For optimal processing of your inquiries / orders, we recommend construction drawings in the popular file formats to send.
For any further questions, please call or write:
Section Lasercutting, Edging and 3-D-Water jet cutting
Marcel Stirblies
Tel.: 05641 / 40599 - 114
E-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.
NEW: Surface Finishing

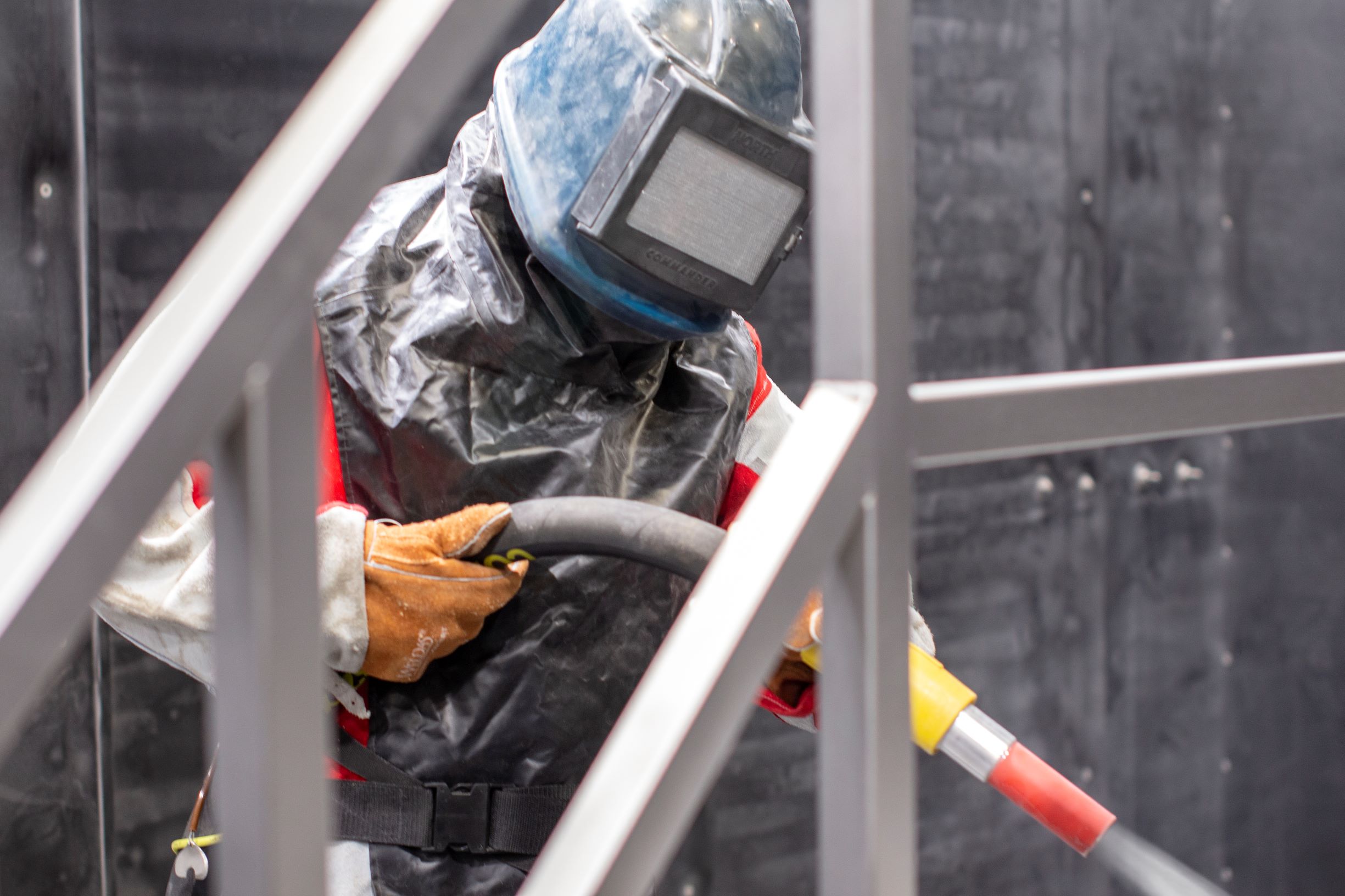

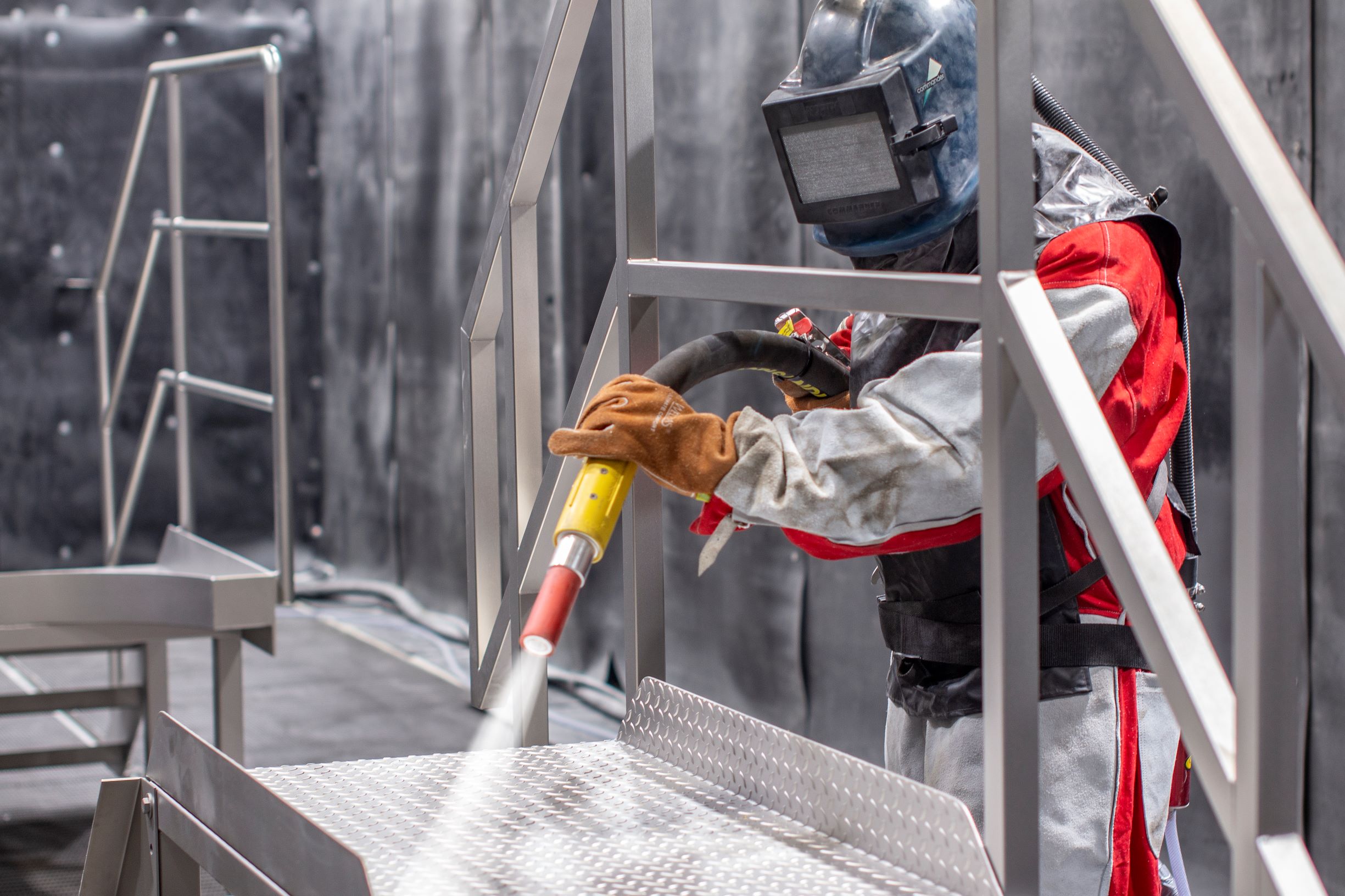

Finishing and matting of stainless steel

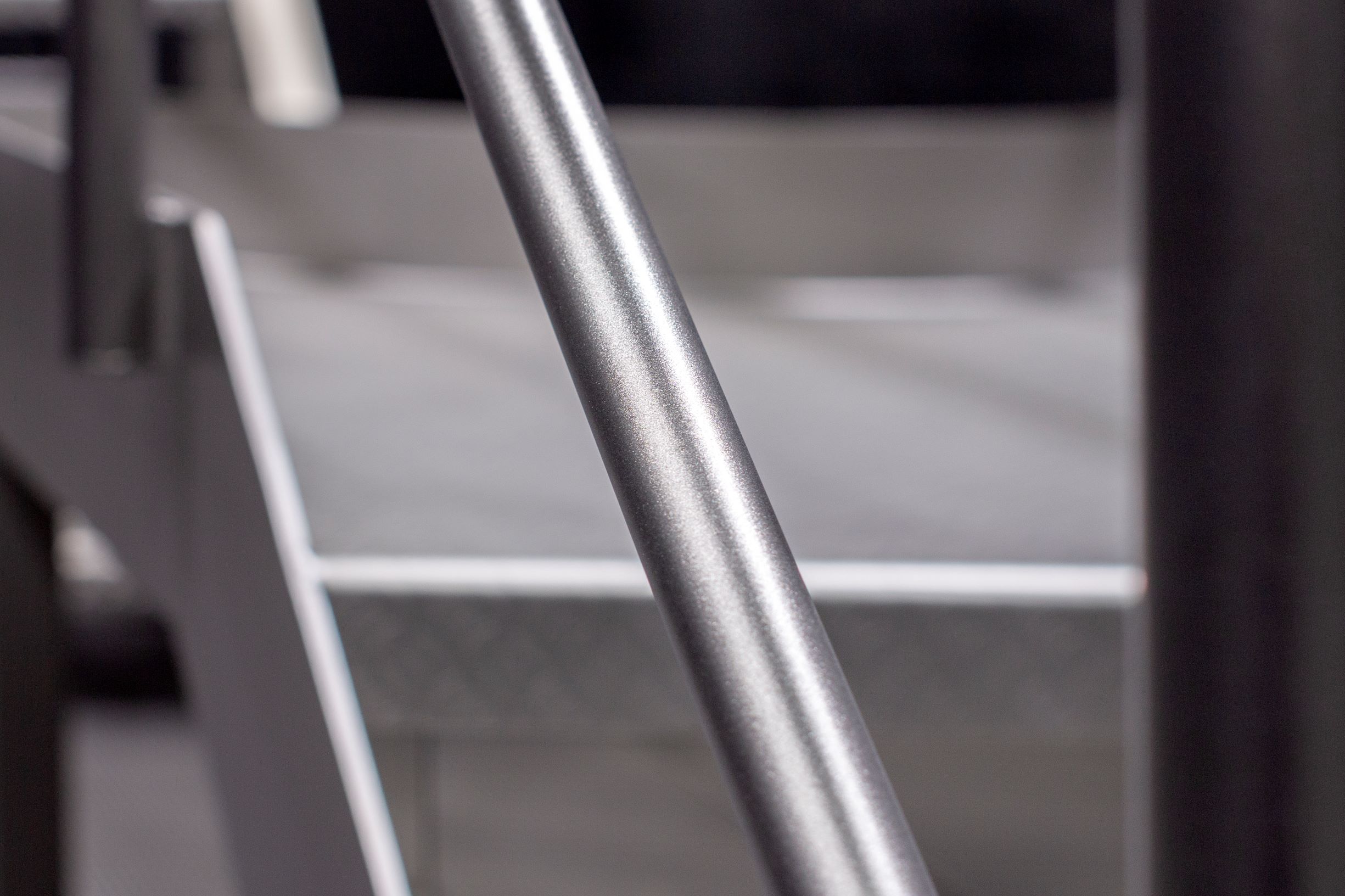

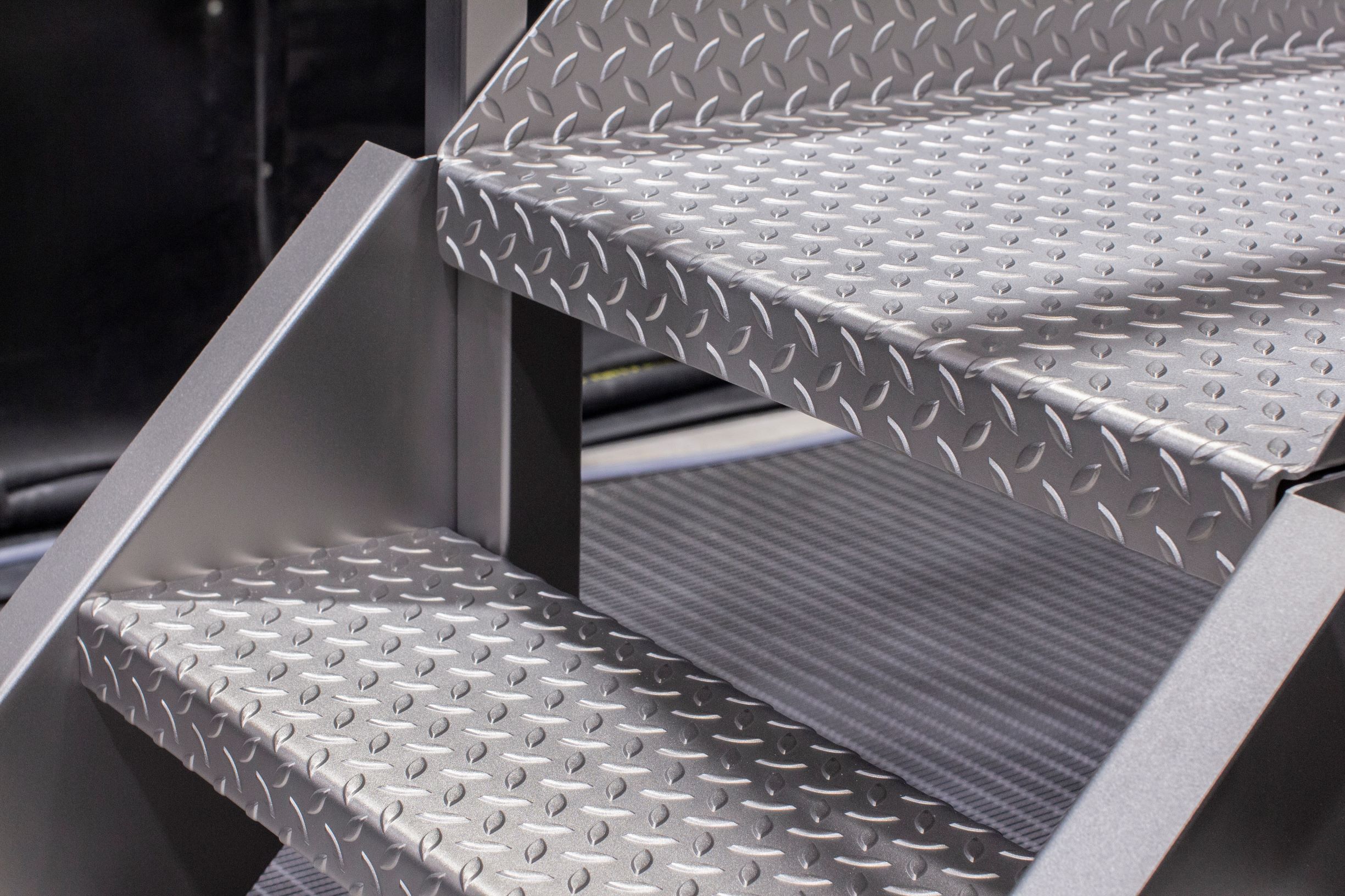

- silky-matt appearance
- Application for the technical industry and food industry
- Design of surfaces
- Processing of small parts, series and racks
- Size blast cabin approx. 3,000 x 9,000 x 3,000mm (B / L / H)
- from a material thickness of 1mm
Bending
- Up to 3,000 mm, 150 t force
- Angle measuring function for precise machining
- Hub magnification up to 100 mm
- 6 axis method on CNC to the conical edges
Laser cutting
|
|
|
|
|
|
|
|
|
|
|
- VA: up to 20 mm
- S235: up to 25 mm
- other materials on request
- Tube 15-155 mm diameter in commercial lengths
- Tubes from 155-350 mm in diameter up to 2,700 mm in length
3-D-Water jet cutting
- Water jet cutting is very accurate
- allows fine contours, acurate angles and tight radii
Advantages of water jet cutting:
- Efficient production technology especially in item production
- Virtually no heat entry in the component through the cutting beam
- No structural changes in the material, such as on hardening and micro cracks
- High machining precision and surface quality at the cutting edge
- VA: up to 200 mm
- S235JR: up to 250 mm
- almost all materials can be edited
